INSTRUCTIONS FOR USING SUNHOUSE SHD7228 RECHARGEABLE FAN

1. Sunhouse SHD722 rechargeable fan

Rechargeable fans, also known as rechargeable fans, are battery-powered cooling devices that can operate during power outages, in places with low power or where electricity is not available. This type of rechargeable fan has a compact design, without an accompanying power cord, so it is very convenient to move.

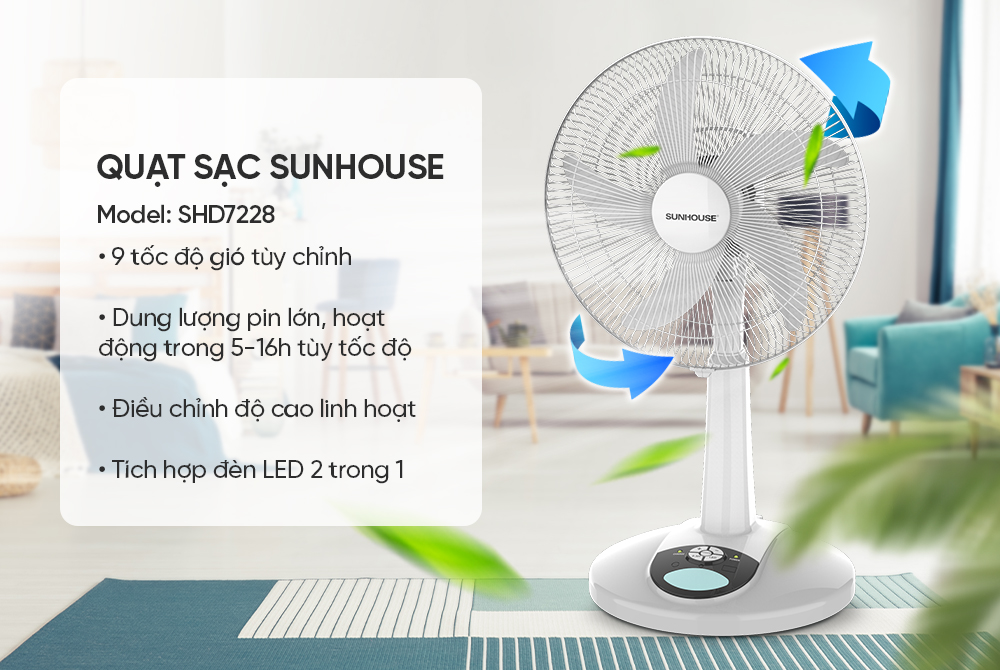

The SUNHOUSE SHD7228 rechargeable fan is a prominent product in the rechargeable fan line, with a compact design and sturdy handle, helping family members easily move the fan between living room, bedroom, etc. The fan is integrated with LED lights to signal operation, and can also be used as a night light, extremely convenient and economical. The smart design of the product helps you adjust the height of the fan body easily.
The SUNHOUSE SHD7228 rechargeable fan uses high-quality batteries, so it can store power for use during power outages. With a large battery capacity, the fan can operate continuously for 5 - 16 hours depending on the speed of use when fully charged. Thanks to that, the SUNHOUSE SHD7228 rechargeable fan becomes an effective cooling solution for the whole family on power outages. With 9 wind speeds from light to strong, the product is suitable for all family members, including children and the elderly.

2. Installation instructions for Sunhouse SHD7228 rechargeable fan

For ease of transport, the manufacturer has separated the parts and packaged them as components. The product set includes: • Fan cage (front and rear).
• Fan blades.
• Fan body, fan base and motor.
• Charging cable, installation accessories and warranty card.
Prepare tools to support the installation of the charging fan: 4-sided screwdriver

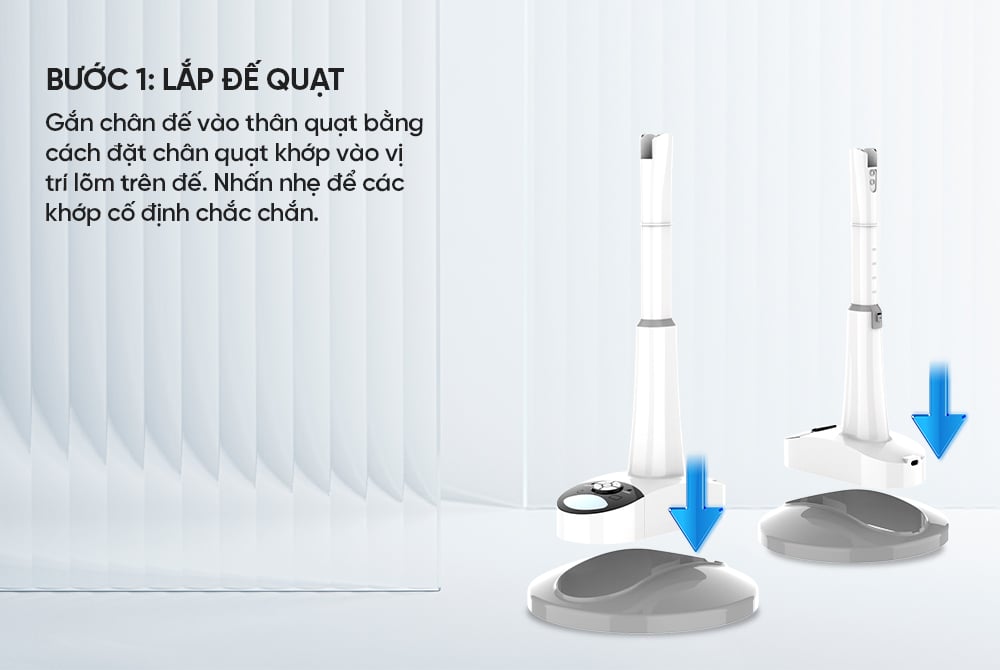

Step 1 : Install the fan base. Attach the base to the fan body by placing the fan base into the recessed position on the base. Press lightly to secure the joints.

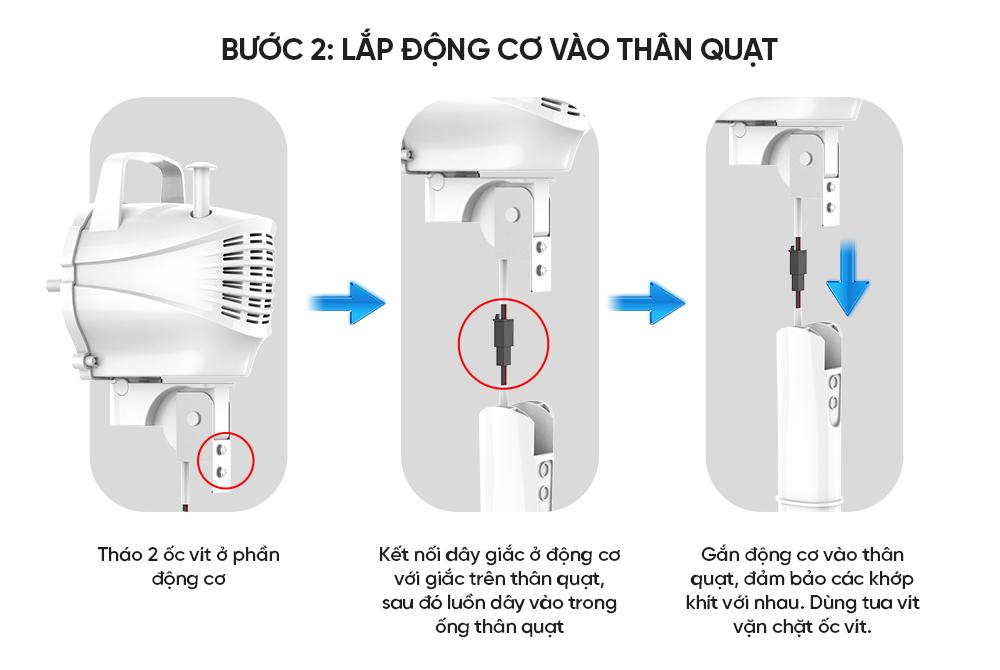

Step 2 : Install the motor into the fan body

• Remove the 2 screws on the motor part.
• Connect the motor plug wire to the jack on the fan body, then thread the wire into the fan body tube
• Attach the motor to the fan body, making sure the joints fit together tightly. Use a screwdriver to tighten the screws.

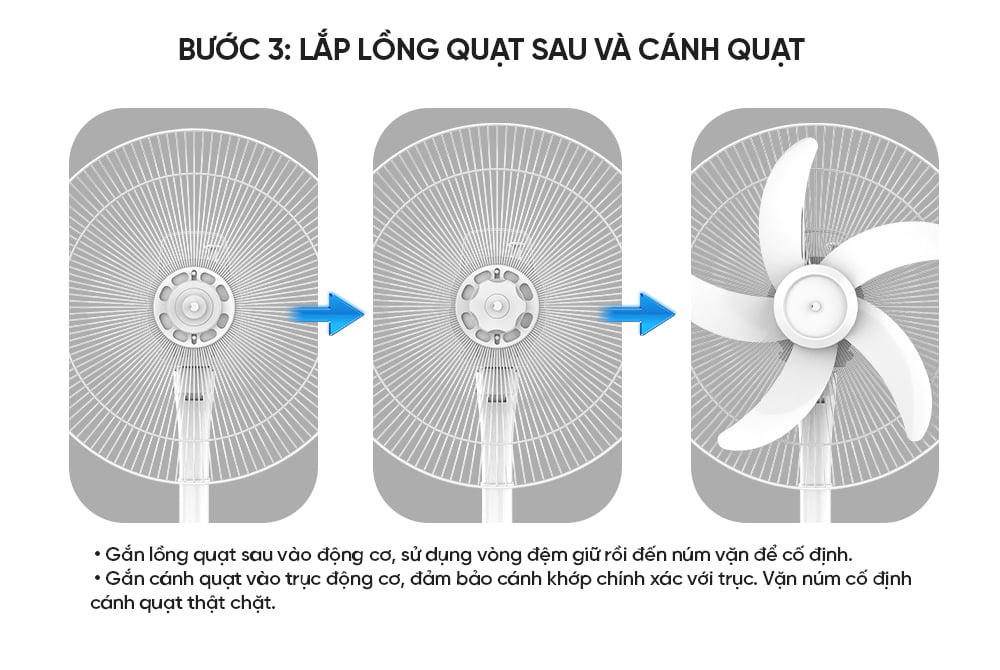

Step 3 : Install the fan blades and fan cage later

• Attach the rear fan cage to the motor, using the retaining washer and then the screw to secure.
• Attach the fan blade to the motor shaft, ensuring the blade fits precisely on the shaft. Tighten the fan blade fixing knob.

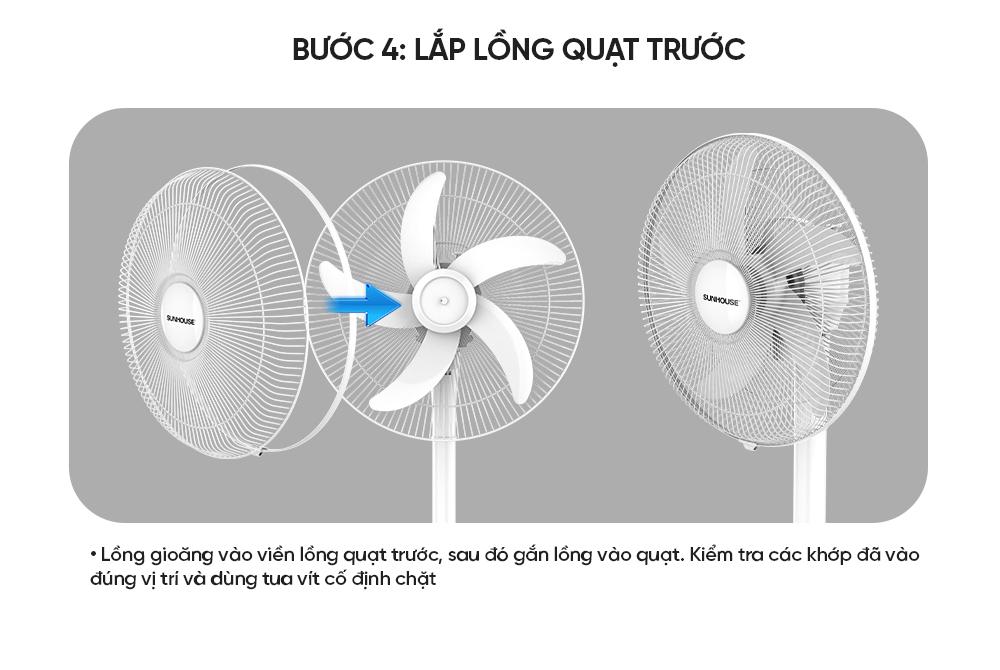

Step 4: Install the fan cage first

• Insert the gasket into the fan cage rim first, then attach the cage to the fan. Check that the joints are in the correct position and use a screwdriver to secure it tightly.

3. Instructions for long-term use of Sunhouse SHD7228 rechargeable fan

3.1. How to operate the product

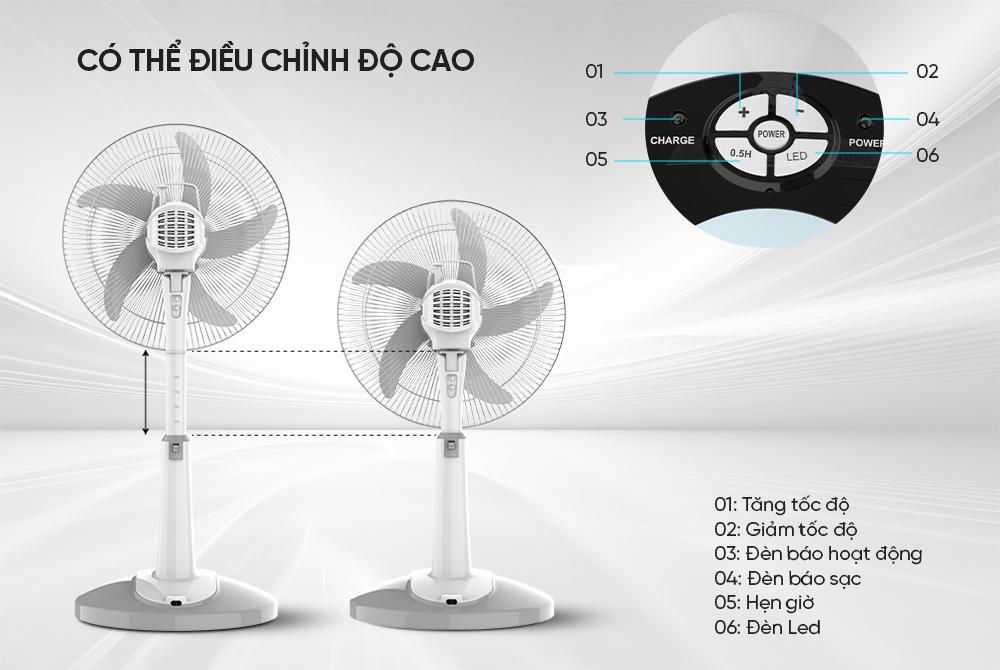

Rechargeable fans are popular and easy-to-use cooling devices, thanks to their familiar design that makes it easy for family members to use and operate. The fan can be adjusted to individual heights via the button on the body. When you need to lower the fan, simply pull the fan body down by hand to reach the desired position.
Similarly, you can change the wind direction by holding and adjusting the fan head up or down according to your needs. The fan base has integrated control buttons such as on/off, increase/decrease wind speed (with 9 different levels), timer mode to turn off after 0.5 hours and LED light to help monitor or use as a night light.

3.2. Instructions for charging and replacing the battery

• First charge: When you first buy it, turn off all fan functions and fully charge it for 12-15 hours to ensure the battery is fully charged.
• Charge the next time: Just charge fully according to the battery indicator light. When the light turns green, indicating the fan is fully charged, it can be used continuously for 5 - 16 hours depending on the wind speed.

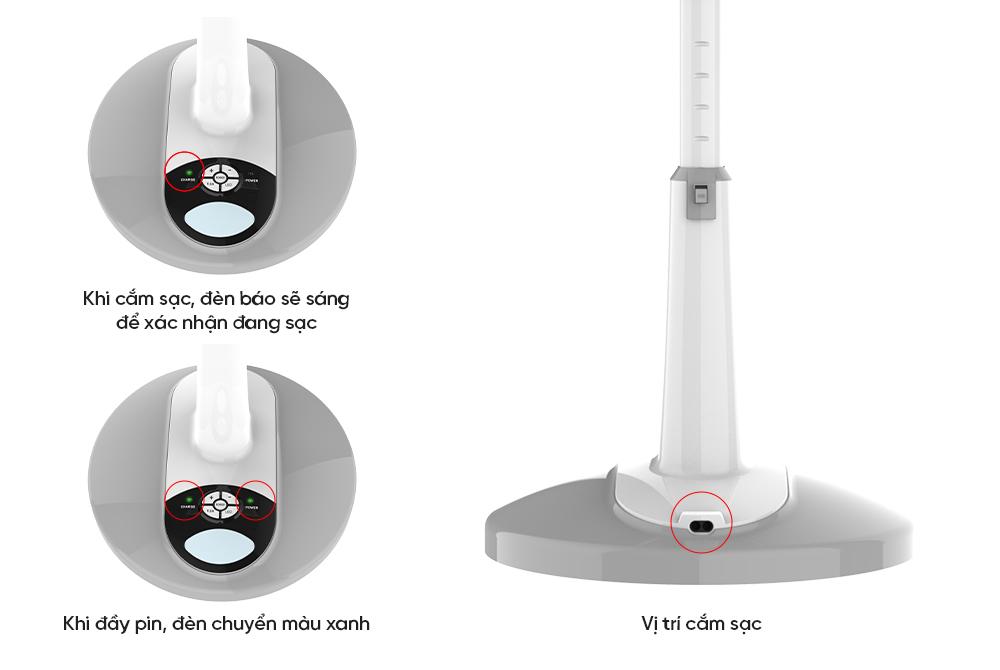

Charging process:

1. Check the power source before connecting.
2. Plug the charger into the power source, the indicator light will light up to confirm charging.
3. Fully charge in about 12-15 hours.

Battery replacement instructions:

1. Disconnect the power and make sure the fan is completely off.
2. Use a screwdriver to remove the screw on the fan cover to remove the old battery.
3. Replace the battery according to the manufacturer's specifications, then reinstall it as before.

Notes when using Sunhouse SHD7228 rechargeable fan to make the fan last longer

• Do not let the battery run out: Regularly charging the battery when it is exhausted greatly affects the battery life. To increase the durability of the product, you can estimate the usage time of the battery charging fan when the fan is almost out of power.
• Do not charge for too long : For the first charge, you can charge for 12-15 hours. However, from the next charges, you should estimate the time and pay attention to the charging indicator light to unplug the charger when the battery is full.
• Do not use the fan while charging : Avoid the habit of using the fan while charging, because the power just charged will be consumed immediately, reducing battery life and fan efficiency. Device manufacturers have also recommended this, so you need to pay attention and change your usage habits so that the rechargeable fan lasts longer and consumes less power.

Above is an article on how to install and use the Sunhouse SHD7228 rechargeable fan. Sunhouse hopes you will have a good experience when using Sunhouse's rechargeable fan.
